Are LR44 and 357 batteries compatible? It is crucial to understand their differences and similarities. Although the two types of batteries are similar in size and often interchangeable, their voltage characteristics and chemical compositions can affect device performance.
LR44 is an alkaline zinc-manganese button battery, while 357 is a silver oxide button battery. Today, this article will explain the differences between them and whether they can be used interchangeably.
What are the main differences between LR44 and 357 batteries?
The main differences between LR44 and 357 batteries lie in their chemistry and voltage output. The LR44 is an alkaline battery with a nominal voltage of 1.5V, while the 357 is a silver oxide battery that provides 1.55V. This slight difference can affect performance, especially in devices requiring stable voltage.
Table: Comparison of LR44 and 357 Batteries
| Aspect | LR44 (Alkaline) | 357 (Silver Oxide) |
|---|---|---|
| Chemistry | Alkaline zinc-manganese | Silver oxide |
| Nominal Voltage | 1.5V | 1.55V |
| Voltage Stability | Moderate (voltage drops gradually) | High (more consistent discharge) |
| Energy Density | Relatively lower | Higher, longer-lasting |
| Temperature Performance | Suitable for general temperatures | Performs well in wider temperature ranges |
| Common Applications | Clocks, calculators, small toys | Watches, cameras, precision instruments |

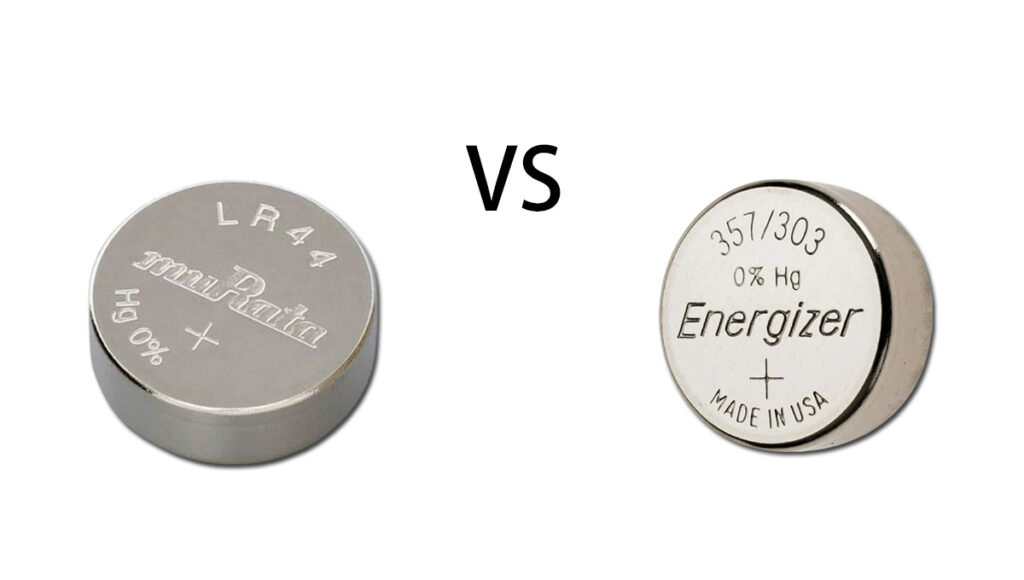

LR44 vs. 357: Specification Differences
| LR44 | 357 | |
|---|---|---|
| Battery Type | Alkaline Manganese | Silver Oxide |
| Nominal Voltage | 1.5V | 1.55V |
| Nominal Capacity | 120 mAh | 150 mAh |
| Operating Temperature | -10°C to 60°C | -10°C to 60°C |
| Diameter (in) | 0.457 in | 0.457 in |
| Diameter (mm) | 11.6 mm | 11.6 mm |
| Height (in) | 0.213 in | 0.213 in |
| Height (mm) | 5.4 mm | 5.4 mm |
| JIS (IEC Standard) | LR44 | SR44/SRW357* |
| Weight (oz) | 0.0705 oz | 0.0812 oz |
| Weight (g) | 2 g | 2.3 g |
LR44 vs. 357: Functional Differences
Characteristics of LR44 Batteries:
- Excellent Cost-Effectiveness
Due to the use of manganese dioxide as the positive electrode material, high cost-effectiveness is achieved. - Superior Stable Discharge and High Drain Pulse Discharge Characteristics
Stable voltage output can be obtained during high drain pulse discharge. - Outstanding Anti-Leakage Performance
Murata’s unique sealing structure, combined with special sealing material treatment, helps achieve excellent anti-leakage properties.
Characteristics of 357 Batteries:
- Chemical System: Silver Oxide (Zn/Ag₂O)
- Names: ANSI-1131SO, IEC-SR44
- Nominal Voltage: 1.55V
- Typical Capacity: 195 mAh* (down to 1.2V)
- Capacity Test: 6.8K ohm continuous drain at 21°C
- Typical Weight: 2.3 g (0.08 oz)
- Typical Volume: 0.57 cm³ (0.035 in³)
- Impedance (40 Hz): 2 to 8 ohms
What is the significance of battery voltage stability?
Voltage stability is crucial for devices that rely on consistent power output to operate accurately. Throughout the discharge cycle, the 357 battery maintains a more stable voltage compared to the LR44, whose voltage declines gradually over time. This stability makes the 357 suitable for precision instruments such as watches and medical devices.
Why is voltage sensitivity important for device performance?
Devices sensitive to voltage fluctuations may malfunction if powered by batteries that cannot provide stable output. For example, if the voltage of an LR44 battery drops below a certain threshold, it may cause unreliable performance or failure in high-demand applications. In contrast, the stable output of the 357 ensures better reliability.
How do the end-of-life voltage characteristics of LR44 and 357 batteries differ?
These batteries exhibit distinct end-of-life characteristics: the LR44 may drop to approximately 1.0V, indicating it is no longer usable, while the 357 maintains a higher end-of-life voltage of about 1.2V before failing. This feature allows devices powered by 357 batteries to function for a longer period without needing replacement.

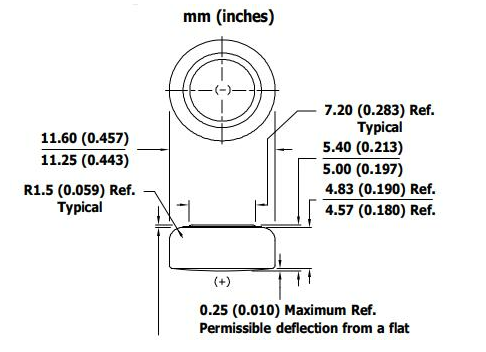

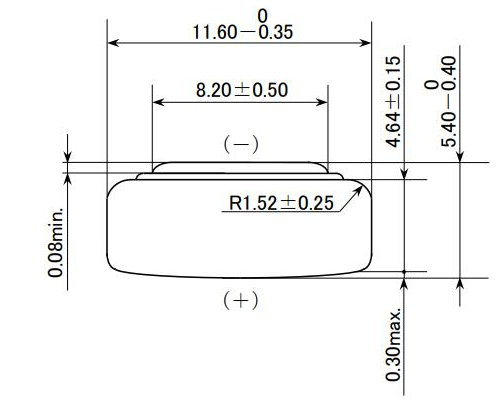

LR44 vs. 357: Differences in Size and Outline
LR44 Battery Equivalents
Several batteries are equivalent to LR44 in terms of size, voltage, and performance. The most common alternatives include AG13, A76, and 357 batteries. These batteries are often interchangeable, meaning they can directly replace LR44 without affecting device performance.
AG13 Battery: Direct Equivalent
- The AG13 battery is directly equivalent to the LR44. Like the LR44, it is an alkaline button battery with a voltage of 1.5V and the same dimensions. AG13 is widely available and frequently used in the same types of devices that require LR44 batteries. The compatibility between AG13 and LR44 ensures you can confidently use this battery as a substitute for LR44.
A76 Battery: Another Compatible Alternative
- The A76 battery is another viable substitute for LR44. This battery shares the same size and voltage characteristics, making it interchangeable with LR44. A76 is commonly used in devices such as laser pointers, digital thermometers, and remote controls. Its wide availability and compatibility make it a convenient choice for those needing an LR44 alternative.
357 Battery: Silver Oxide Option
- The 357 battery differs slightly from the LR44 as it is a silver oxide battery. While alkaline LR44 batteries are cheaper than silver oxide ones, the 357 still maintains the same size and voltage, making it suitable for devices that require LR44. The 357 battery typically offers higher energy density and more stable output voltage, which is advantageous in certain applications, such as medical devices or high-precision instruments.
Why choose equivalent batteries?
Choosing equivalent batteries such as AG13, A76, or 357 can offer multiple benefits:
- Interchangeability: These batteries are generally widely available, making it easier to find replacements when needed.
- Cost-effectiveness: Depending on the brand and availability, some equivalents may be cheaper than LR44 batteries.
- Performance: In certain cases, such as using a 357 battery, you may experience better performance due to differences in chemical composition.
Can LR44 and 357 batteries be interchanged?
To generate electricity, 357 and LR44 batteries use different materials and chemical reactions. The silver oxide 357 battery outperforms the alkaline LR44 battery in performance. The 357 battery maintains a consistent voltage around 1.55 volts until its chemical energy is almost exhausted, at which point the voltage drops abruptly. In contrast, the alkaline LR44 battery experiences a steady voltage decline throughout its discharge life.
In most applications, 357 and LR44 batteries are interchangeable, except for devices that require consistent voltage. For example, precision instruments like calipers and certain watches benefit from the stable voltage performance of 357. The higher available capacity of 357 is advantageous for devices with high energy demands.
The compatibility of button batteries (such as LR44 and 357) depends on various factors, including size, voltage, and application requirements. Although these batteries are sometimes considered equivalent, it is crucial to distinguish their subtle differences.
Conclusion
In summary, LR44 batteries can be interchanged with several other batteries, including AG13, A76, and 357. These equivalent batteries share similar dimensions, voltage, and performance, making them well-suited for replacing LR44 in various devices. Whether you choose an alkaline battery (such as AG13) or a silver oxide battery (like 357), understanding the differences between these options will help you make the best choice based on your specific needs. When selecting a replacement battery, be sure to consider factors such as brand quality, environmental impact, and device compatibility.
For those who need a reliable power source for their devices, any of these LR44 equivalents can provide the necessary energy to ensure your equipment continues to operate efficiently.
